Brakes + Pedal Gear

View Diagram

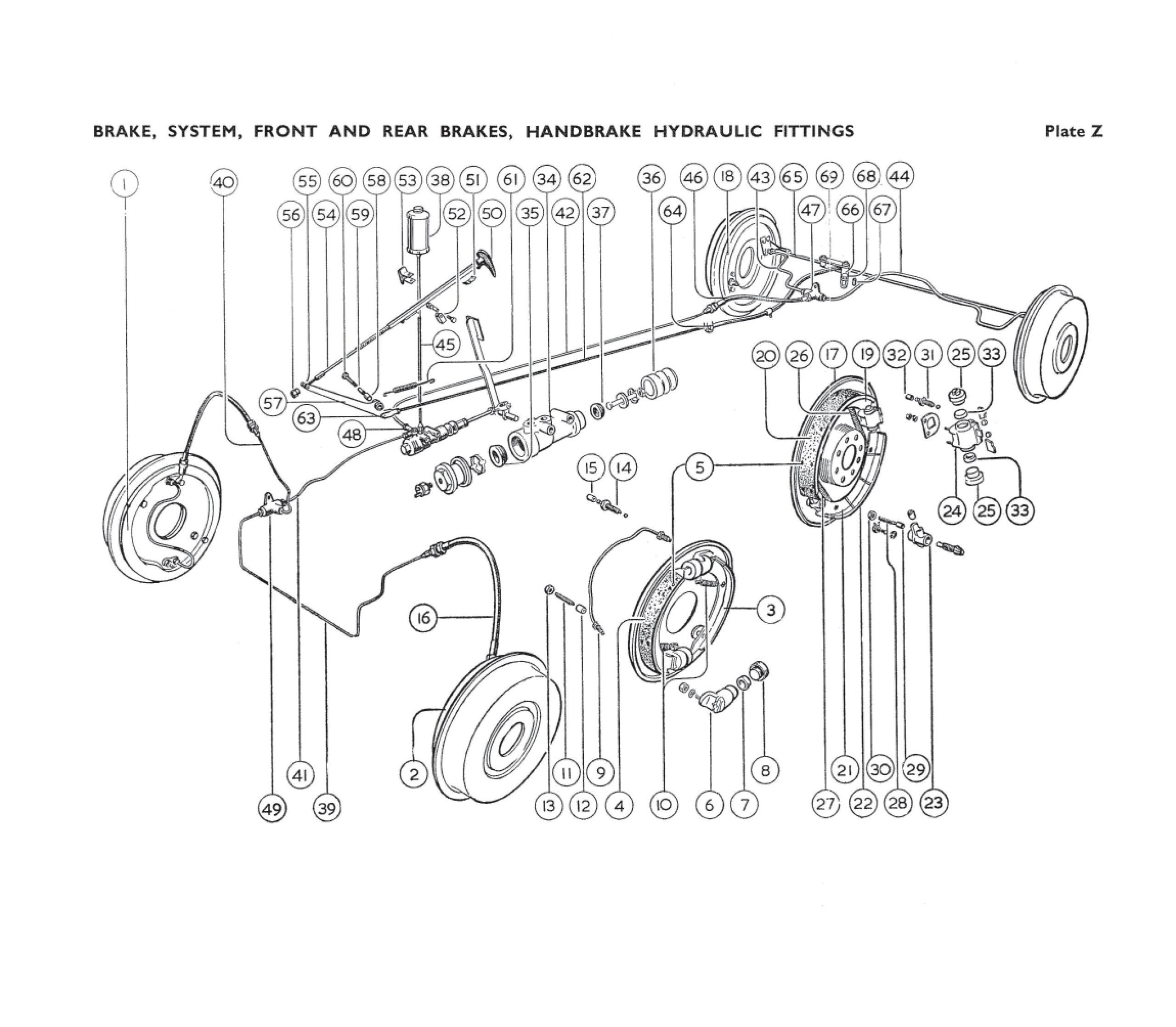

Brake System

Ill. No.	Part No.	product name	Car Total	Stock	Price	Quantity
1	55663	PLATE, Backing, Front O/S	1	20	£30.00	- +
2	55639	PLATE, Backing, Front N/S	1	16	£30.00	- +
3	55644	SHOE AND LINING ASSEMBLY, Brake Front N/S	2	10	£30.00	- +
	55664	SHOE AND LINING ASSEMBLY, Brake Front O/S	2	10	£30.00	- +
4	53524	Lining, Front	4	20	£30.00	- +
5	70376	Rivets, Lining Fixing	96	5	£30.00	- +
6	55651	CYLINDER, Wheel, Front N/S	2	3	£30.00	- +
	55665	CYLINDER, Wheel, Front O/S	2	1	£30.00	- +
	55675	Nut, Wheel Cylinder	2	13	£30.00	- +
7	74670	Seal, Front	4	15	£30.00	- +
8	55660	Piston, Front	2	18	£30.00	- +
	76845	Cap, Rubber, Piston, Front	2	10	£30.00	- +
9	55667	Pipe Assembly, Bridege, Front	2	16	£30.00	- +
10	55670	Spring, Shoe Return, Front	4	20	£30.00	- +
11	55671	Post, Steady, Front	4	10	£30.00	- +
12	55672	Bush, Felt, Front	4	16	£30.00	- +
13	55673	Nut, 5/16in. ANF Front	4	2	£30.00	- +
14	55676	Screw, Bleed, Front	2	16	£30.00	- +
15	55677	Hose Assembly, High Pressure, Front	2	18	£30.00	- +
16	55679	PLATE ASSEMBLY, Backing Rear	2	16	£30.00	- +
17	55686	PLATE ASSEMBLY, Backing Rear	2	14	£30.00	- +
	71352	PLATE ASSEMBLY, Backing Rear After 1st 150 DB2's	2	14	£30.00	- +
	78207	PLATE ASSEMBLY, Backing, Rear N/S	1	5	£30.00	- +
	52773	PLATE ASSEMBLY, Backing, Rear N/S	1	10	£30.00	- +
18	78208	PLATE ASSEMBLY, Backing, Rear O/S	1	16	£30.00	- +
	52774	PLATE ASSEMBLY, Backing, Rear O/S	1	7	£30.00	- +
19	55691	SHOE AND LINING ASSEMBLY, Brake, Leading, Rear	2	14	£30.00	- +
	54452	SHOE AND LINING ASSEMBLY, Brake, Leading, Rear	2	13	£30.00	- +
20	53522	Lining, Leading, Rear	2	16	£30.00	- +
	54454	Lining, Leading, Rear	2	7	£30.00	- +
21	55696	SHOE AND LINING ASSEMBLY, Brake, Trailing, Rear	2	18	£30.00	- +
22	53523	Lining, Trailing, Rear	2	11	£30.00	- +
	54457	Lining, Trailing, Rear	2	4	£30.00	- +
23	55698	Adjuster, Union, Complete	2	6	£30.00	- +
24	55706	CYLINDER, Wheel, Hydraulic, Rear N/S	1	15	£30.00	- +
	55707	CYLINDER, Wheel, Hydraulic, Rear O/S	1	8	£30.00	- +
25	55722	Piston, Rear	4	1	£30.00	- +
	76846	Cap, Rubber, Piston, Rear	4	11	£30.00	- +
26	55726	Spring, Shoe Return, Top, Rear	2	15	£30.00	- +
27	55727	Spring, Shoe Return, Bottom Rear	2	8	£30.00	- +
28	55671	Post, Steady, Rear	4	8	£30.00	- +
	54458	Post, Steady, Rear	4	11	£30.00	- +
29	55672	Bush, Felt, Rear	4	6	£30.00	- +
30	55673	Nut, 5/16in. ANF, Rear	4	10	£30.00	- +
31	55676	Screw, Bleed, Rear	2	6	£30.00	- +
32	55721	Cap, Dust, (Rubber) Rear	2	20	£30.00	- +
33	74670	Seal, Rear	4	20	£30.00	- +
34	70180	CYLINER, Master, Complete	1	11	£30.00	- +
35	70183	Seal, Outer	1	13	£30.00	- +
36	55740	Boot	1	8	£30.00	- +
37	70184	Seal, Recuperating	1	1	£30.00	- +
38	55618	Tank, Supply, Complete	1	14	£30.00	- +
	53931	Tank, Supply, Complete	1	5	£30.00	- +
39	55630	Pipe Assembly, No.1, Front 3 way to N/S Hose	1	4	£30.00	- +
40	55631	Pipe Assembly, No.1, Front 3 way to O/S Hose	1	7	£30.00	- +
41	55632	Pipe Assembly, No.3, Master to front 3 way	1	1	£30.00	- +
	73729	Pipe Assembly, No.3, Master Cyl. to 4 way	1	19	£30.00	- +
42	55633	Pipe Assembly, No.4, Master Cyl. to Rear Hose	1	9	£30.00	- +
	73731	Pipe Assembly, No. 4, To Rear Hose	1	18	£30.00	- +
43	55634	Pipe Assembly, No. 5, Rear 3 way to O/S Rear	1	11	£30.00	- +
44	55635	Pipe Assembly, No. 6, Rear 3 way to N/S Rear	1	10	£30.00	- +
	74491	Pipe Assembly, No. 6, Rear 3 way to N/S Rear	1	2	£30.00	- +
45	57967	Pipe Assembly, No. 7, Master Cyl. To Supply Tank	1	3	£30.00	- +
	72534	Pipe Assembly, No. 7, Master Cyl. To Supply Tank	1	2	£30.00	- +
	73619	Pipe Assembly, No.7, Master Cyl. To Supply Tank (LHD & Late RHD)	1	3	£30.00	- +
46	55619	Hose, High Pressure, 14in.	1	18	£30.00	- +
47	55623	3-way Piece, Rear	1	9	£30.00	- +
48	55624	Banjo, 90 degree Angle	1	16	£30.00	- +
49	74489	4-wat Piece	1	20	£30.00	- +
50	50971	Control, Handbrake	1	7	£30.00	- +
	78631	Control, Handbrake	1	16	£30.00	- +
51	58608	Spring, Leaf, H.B. Control	1	7	£30.00	- +
52	55774	Clip, H.B. Mounting	1	15	£30.00	- +
53	55775	Distance Piece, Mounting	1	14	£30.00	- +
54	55770	Cable, H.B.	1	18	£30.00	- +
55	50974	Pin, trunion, H.B. Cable	1	18	£30.00	- +
56	50975	Nut,Adjsting, H.B. Cable	1	6	£30.00	- +
57	55771	Lever, Swing, H.B. Cable	1	9	£30.00	- +
58	51299	Bush, Swing Lever	1	16	£30.00	- +
59	50984	Spindle Lever	1	8	£30.00	- +
60	119345	Bolt, 5/16in. X 1/2in. BSF	1	19	£30.00	- +
	78680	Adjuster	1	14	£30.00	- +
	78679	Abutment	1	16	£30.00	- +
	119442	Nut, Lock, 3/8in. BSF	2	7	£30.00	- +
	78691	Plate, Returng Spring	1	12	£30.00	- +
	119234	Bolt, 5/16in. X 3in. BSF	1	1	£30.00	- +
	55473	Tab, Return Spring	1	6	£30.00	- +
	119471	Washer, Spring, 5/16in.	1	12	£30.00	- +
	119520	Pin, Split, 1/16in. X 1/2in.	1	9	£30.00	- +
	111501	Setscrew, 5/16in. X 3/4in. BSF	2	8	£30.00	- +
	119481	Washer, Spring	2	13	£30.00	- +
	119402	Nut, Plain 5/16in. BSF	2	16	£30.00	- +
	112213	Setscrew, 2BA x 1/2in. Hex. Hd.	1	20	£30.00	- +
	119488	Washer, Spring, 3/16in.	1	4	£30.00	- +
	11109	Nut, 2BA	1	11	£30.00	- +
61	55773	Spring, Return, Handbrake Lever	1	1	£30.00	- +
62	55761	CABLE ASSEMBLY, Handbrake, Long	1	1	£30.00	- +
	78681	CABLE ASSEMBLY, Handbrake, Long	1	9	£30.00	- +
	125497	Cable, Inner (wire) State Model and length when ordering	1	19	£30.00	- +
	119481	Washer, Spring, 5/16in.	1	18	£30.00	- +
63	57150	Pin, Fork End, 5/16in. Dia.	1	16	£30.00	- +
64	50988	Clip, H.B. Cable	1	17	£30.00	- +
65	55762	CABLE ASSEMBLY, Handbrake, Short	1	20	£30.00	- +
66	71833	Link Assembly, Swivel (Supplied Together)	1	1	£30.00	- +
67	55780	Bush (Supplied Together)	1	16	£30.00	- +
68	55781	Bolt, Pivot	1	11	£30.00	- +
69	55782	Link, Handbrake	1	13	£30.00	- +
	55783	Block	1	16	£30.00	- +
	55784	Abutment	1	10	£30.00	- +

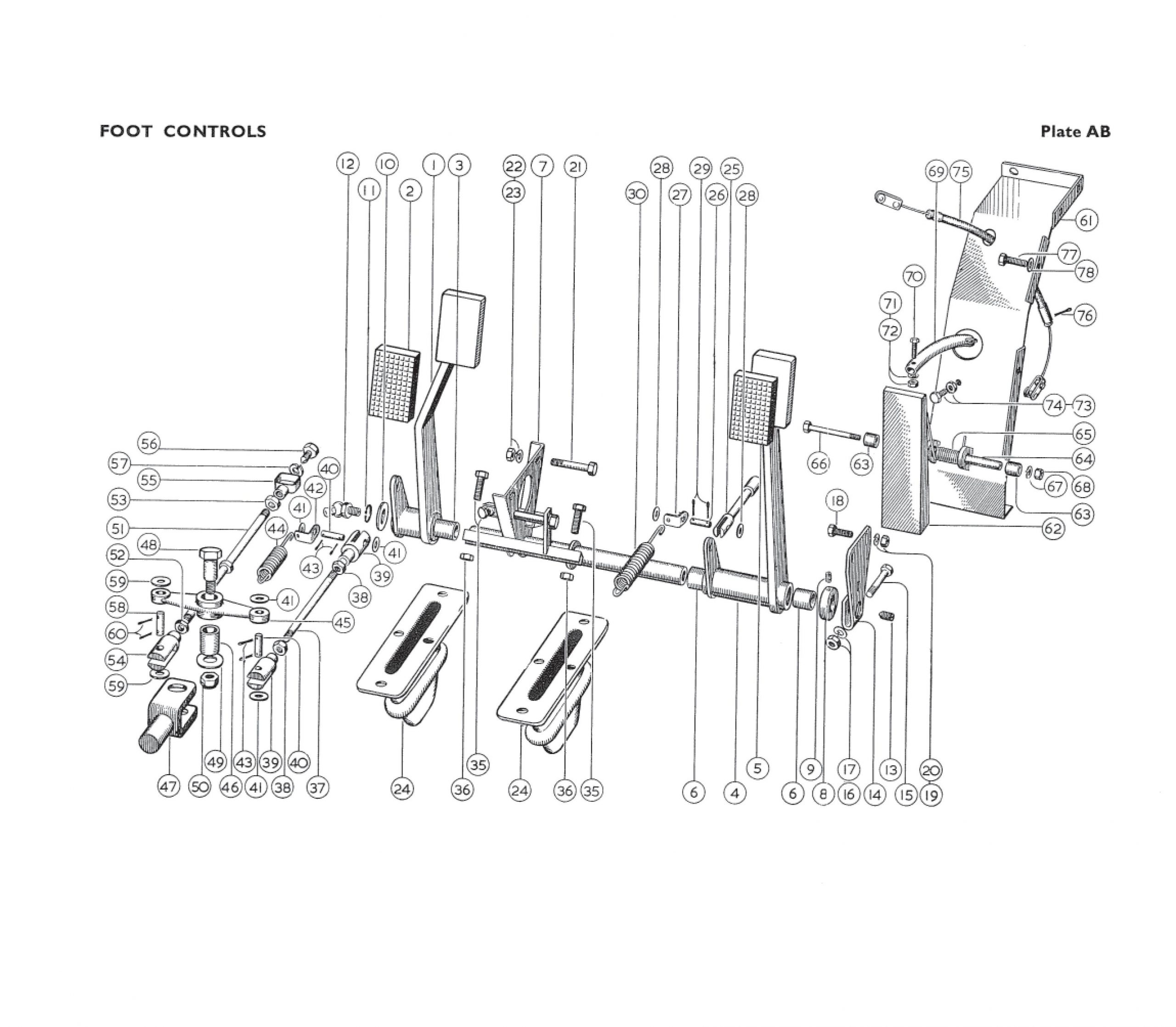

Foot Controls

Ill. No.	Part No.	product name	Car Total	Stock	Price	Quantity
1	72598	PEDAL ASSEMBLY, Clutch	1	14	£30.00	- +
	72585	PEDAL ASSEMBLY, Clutch	1	9	£30.00	- +
	55561	PEDAL ASSEMBLY, Clutch	1	19	£30.00	- +
	56608	PEDAL ASSEMBLY, Clutch	1	12	£30.00	- +
2	20.29.141	Pad, Rubber, Clutch Pedal	1	12	£30.00	- +
3	113465	Bush, Pedal Lever	2	9	£30.00	- +
4	72599	PEDAL ASSEMBLY, Brake	1	14	£30.00	- +
	72608	PEDAL ASSEMBLY, Brake	1	12	£30.00	- +
	70172	PEDAL ASSEMBLY, Brake	1	17	£30.00	- +
	56257	PEDAL ASSEMBLY, Brake	1	11	£30.00	- +
5	20.29.141	Pad, Rubber, Brake Pedal	1	1	£30.00	- +
6	113465	Bush, Brake, Pedal Lever	2	20	£30.00	- +
	112148	Bush, Brake, Pedal Lever	2	18	£30.00	- +
7	72500	Welded Assembly, Pedal Shaft	1	19	£30.00	- +
	55553	Bracket Assembly, Pedal	1	20	£30.00	- +
	72606	Bracket Assembly, Support, Pdeal Shaft	1	6	£30.00	- +
	56069	Bracket Assembly, Pdeal	1	9	£30.00	- +
	112149	Bush, Vandervell, No. B.2263	2	17	£30.00	- +
	72586	Shaft Assembly, Clutch Pedal	1	6	£30.00	- +
	56602	Shaft Assembly, Clutch Pedal	1	2	£30.00	- +
	56262	Washer, Thrust	1	20	£30.00	- +
8	72493	Collar, Rataining	1	3	£30.00	- +
9	110979	Screw, Grub, Sloted, 2BA x 5/16in.	1	19	£30.00	- +
10	55559	Washer, Retaining	1	12	£30.00	- +
	55559	Washer, Retaining	2	20	£30.00	- +
11	111290	Circlip, 3/4in. Ext. Type	1	9	£30.00	- +
	111290	Circlip, 3/4in. Ext. Type	2	3	£30.00	- +
12	119640	Nipple, Grease, 1/8in. BSP 90 degree	1	17	£30.00	- +
	113426	Nipple, Grease, 1/8in. BSP 35 degree	2	9	£30.00	- +
13	121943	Screw, Grub, 1/8in. BSP x 1/2in.	1	8	£30.00	- +
	112250	Nipple, Grease, 1/8in. BSP Straight	1	7	£30.00	- +
	119226	Bolt, 5/16in. BSF x 1.1/2in.	2	16	£30.00	- +
	119481	Washer, Spring, 5/16in.	3	18	£30.00	- +
	113410	Nut, Plain, Simmonds, 5/16in.	2	13	£30.00	- +
	72567	Plate Assembly, Brg., Pedal Shaft	1	7	£30.00	- +
	56273	Plate Assembly, Brg., Pedal Shaft	1	3	£30.00	- +
	112149	Bush, Brg. Shaft	1	11	£30.00	- +
	119345	Bolt, 5/16in. BSF x 1.1/2in.	3	12	£30.00	- +
	119402	Nut, Plain, 5/16in. BSF	3	18	£30.00	- +
	119220	Bolt, 5/16in. BSF x 3/4in.	3	8	£30.00	- +
	113410	Nut, Simmonds, 5/16in. BSF	4	20	£30.00	- +
14	72419	Plate, Support	1	7	£30.00	- +
15	119228	Bolt, 5/16in. BSF x 1.3/4in.	1	7	£30.00	- +
16	119481	Washer, Spring, 5/16in.	1	20	£30.00	- +
17	119402	Nut, Plain, 5/16in. BSF	1	5	£30.00	- +
18	119346	Bolt, 5/16in. BSF x 5/8in.	3	9	£30.00	- +
19	119481	Washer, Spring, 5/16in.	3	19	£30.00	- +
20	119402	Nut, Plain, 5/16in. BSF	3	11	£30.00	- +
21	119228	Bolt, 5/16in. BSF x 1.3/4in.	4	16	£30.00	- +
	119229	Bolt, 5/16in. BSF x 1.7/8in.	4	6	£30.00	- +
	119230	Bolt, 5/16in. BSF x 2in.	4	20	£30.00	- +
22	119481	Washer, Spring, 5/16in.	4	12	£30.00	- +
23	119402	Nut, Plain, 5/16in. BSF	4	14	£30.00	- +
	55596	Bracket, Bell Housing (Early models)	1	2	£30.00	- +
	56620	Bracket, Bell Housing (Early models)	1	10	£30.00	- +
	55585	Bracket, Bell Housing Bracket (Early models)	1	13	£30.00	- +
24	72574	Gaiter, Pedal	2	11	£30.00	- +
25	73336	ROD, Push Master Cylinder	1	16	£30.00	- +
	56919	ROD, Push Master Cylinder	1	12	£30.00	- +
26	55582	Pin, Fork End	1	5	£30.00	- +
	55572	Pin, Fork End	1	14	£30.00	- +
27	72575	Anchor, Spring	1	15	£30.00	- +
	55473	Tab, Pedal Return Spring	1	14	£30.00	- +
	55573	Distance Piece	1	6	£30.00	- +
28	119471	Washer, Plain, 5/16in.	1	14	£30.00	- +
	119471	Washer, Plain, 5/16in.	2	16	£30.00	- +
29	111934	Pin, Split, 1/16in. X 5/8in.	2	2	£30.00	- +
30	55583	Spring	1	7	£30.00	- +
35	110938	Setscrew, 5/16in. BSF x 1in. Hex. Hd.	2	4	£30.00	- +
	121834	Bolt, 1/4in. BSF x 1.3/8in. (Short)	1	16	£30.00	- +
	110938	Setscrew, 5/16in. BSF x 1in. Hex. Hd.	3	3	£30.00	- +
	121835	Bolt, 1/4in. BSF x 1.7/8in. (Long)	2	4	£30.00	- +
36	119441	Nut, Lock, 5/16in. BSF	2	2	£30.00	- +
	119441	Nut, Lock, 5/16in. BSF	3	11	£30.00	- +
	119440	Nut, Lock, 1/4in. BSF	3	4	£30.00	- +
37	72484	Rod, Clutch Pedal, Op.Lever	1	11	£30.00	- +
	77295	Rod, Clutch Pedal, Op.Lever (latest)	1	6	£30.00	- +
	55578	Rod, Clutch Pedal, Op.Lever	1	11	£30.00	- +
38	119441	Nut, 5/16in. BSF R.H.	2	12	£30.00	- +
39	55571	Fork End, R.H.	2	17	£30.00	- +
40	55582	Pin, Fork End	2	4	£30.00	- +
41	119471	Washer, Plain, 5/16in.	4	3	£30.00	- +
42	72575	Anchor, Spring	1	11	£30.00	- +
43	111934	Pin, Split, 1/16in. X 5/8in.	4	11	£30.00	- +
44	55583	Spring	1	20	£30.00	- +
	55584	Lever, Cluth Comp. (Early Type)	1	3	£30.00	- +
	55585	Silentbloc, Clutch Comp, Lever (Early Type)	1	2	£30.00	- +
	55587	Bush, Outer, Clutch Comp, Lever (Early Type)	1	4	£30.00	- +
	55586	Bush, Inner, Clutch Comp, Lever (Early Type)	1	20	£30.00	- +
	55588	Pin, Pivot, Clutch Comp, & Op. Lever (Early Type)	1	7	£30.00	- +
	119474	Washer, Plain, 1/2in. (Early Type)	1	6	£30.00	- +
	113415	Nut, Simmonds, 1/2in. BSF (Early Type)	1	8	£30.00	- +
45	72806	Lever, Clutch Operating	1	6	£30.00	- +
	72806	Lever, Clutch Operating (Early Type)	1	15	£30.00	- +
	77294	Lever, Clutch Operating (Latest Type)	1	19	£30.00	- +
46	55590	Bush, Clutch Operating Lever (Early Type)	1	15	£30.00	- +
	122267	Bush, Clutch Operating Lever (Latest Type)	1	19	£30.00	- +
	55591	Cap, Pivot Pin (Early Type)	1	6	£30.00	- +
	119472	Washer, Plain, 3/8in. (Early Type)	1	1	£30.00	- +
	113411	Nut, Simmonds, 3/8in. BSF (Early Type)	2	16	£30.00	- +
	55592	Washer, Clutch Comp, Lever (Early Type)	2	16	£30.00	- +
	11945	Bolt, 3/8in. BSF (Early Type)	1	20	£30.00	- +
47	77292	Fork, Mtg. Clutch Op. Lever (Latest Type)	1	18	£30.00	- +
48	77293	Pin, Clutch Op. Lever (Latest Type)	1	14	£30.00	- +
49	119472	Washer, Plain, 3/8in. (Latest Type)	1	9	£30.00	- +
50	113411	Nut, Simmonds, 3/8in. BSF (Latest Type)	1	19	£30.00	- +
	55593	Tube Assembly, Clutch Comp. (Early Type)	1	12	£30.00	- +
	119247	Bolt, 3/8in. BSF x 1.3/4in. (Early Type)	2	18	£30.00	- +
	55575	Rod Assembly, Cluth Op. (Early Type)	2	3	£30.00	- +
51	77297	Rod Assembly, Cluth Adjusting (Latest Type)	1	2	£30.00	- +
52	111206	Nut, Lock, 5/16in. BSF L.H.	1	13	£30.00	- +
53	119441	Nut, Lock, 5/16in. BSF R.H.	1	18	£30.00	- +
54	55579	Fork End, L.H.	1	16	£30.00	- +
55	50745	Bracket, Pivot, Clutch Adj.	1	4	£30.00	- +
56	50743	Bolt, Pivot, Clutch Adj.	1	5	£30.00	- +
57	119480	Washer, Spring, 1/4in.	1	1	£30.00	- +
58	55582	Pin, Fork End	1	7	£30.00	- +
59	119471	Washer, Plain, 5/16in.	2	3	£30.00	- +
60	11934	Pin, Split, 1/16in. X 5/8in.	2	19	£30.00	- +
61	72508	PLATFORM ASSEMBLY, Acc. Pedal	1	11	£30.00	- +
	78864	PLATFORM ASSEMBLY, Acc. Pedal	1	18	£30.00	- +
	77468	PLATFORM ASSEMBLY, Acc. Pedal	1	1	£30.00	- +
	55228	PLATFORM ASSEMBLY, Acc. Pedal	1	7	£30.00	- +
	57685	PLATFORM ASSEMBLY, Acc. Pedal	1	4	£30.00	- +
62	55225	Plate Assembly, Acc. Pedal	1	18	£30.00	- +
	77277	Plate Assembly, Acc. Pedal	1	10	£30.00	- +
	57687	Plate Assembly, Acc. Pedal	1	19	£30.00	- +
63	51328	Bush, Pedal Bearing Bracket	2	19	£30.00	- +
64	55231	Spindle, Bearing	1	7	£30.00	- +
65	55232	Spring, Return, Acc. Pedal	1	18	£30.00	- +
66	119211	Bolt, 1/4in. BSF x 2in.	1	9	£30.00	- +
67	119480	Washer, Spring, 1/4in.	1	7	£30.00	- +
68	119401	Nut, Plain, 1/4in. BSF	1	6	£30.00	- +
69	58980	Quadrant Assembly, Acc. Pedal	1	13	£30.00	- +
70	111839	Bolt, 2BA x 7/8in.	1	13	£30.00	- +
71	119488	Washer, Spring, 3/16in.	1	10	£30.00	- +
72	111109	Nut, Plain, 2BA	1	4	£30.00	- +
73	119440	Nut, Lock, 1/4in. BSF	1	9	£30.00	- +
74	121834	Bolt, 1/4in. BSF x 1.3/8in.	1	5	£30.00	- +
75	77309	Cable, Acc. Pedal	1	11	£30.00	- +
	77310	Cable, Acc. Pedal	1	15	£30.00	- +
	55233	Cable, Acc. Pedal	1	20	£30.00	- +
	57622	Cable, Acc. Pedal	1	8	£30.00	- +
76	112102	Pin, Split, 9/64in. x 1in.	2	14	£30.00	- +
77	111730	Setscrew, 2BA x 3/8in. (Platform to Bulkhead)	6	13	£30.00	- +
	7525199279ce	Setscrew, 2BA x 3/8in. (Platform to Bulkhead)	5	19	£30.00	- +
78	119496	Washer, Plain, 3/16in. (Platform to Bulkhead)	6	17	£30.00	- +
	119496	Washer, Plain, 3/16in. (Platform to Bulkhead)	5	17	£30.00	- +

Technical Publications

For all Parts Catalogues, Workshop Manuals and Instruction Books please follow the link to the technical publications page.

DB2/4 MkIII

90222 Parts Catalogue
90222 Parts Catalogue
90222 Parts Catalogue

£ 29 EA

Can't Find What You're Looking For?

INTERNATIONAL SHIPPING AVAILABLE

All payments should be made in UK Pounds Sterling (£) either by Cash, Cheque, Credit/Debit Card or Bank Transfer.
